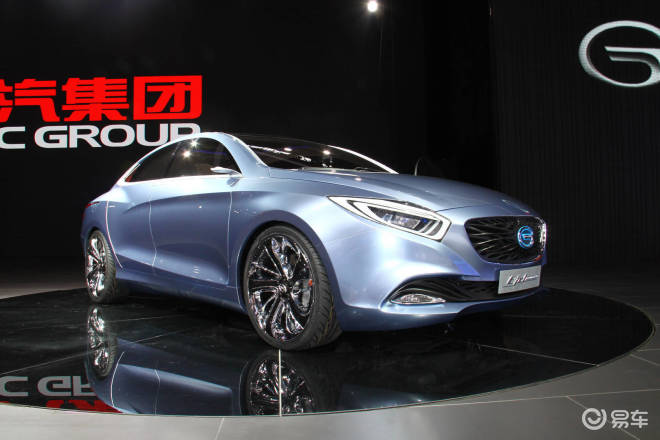

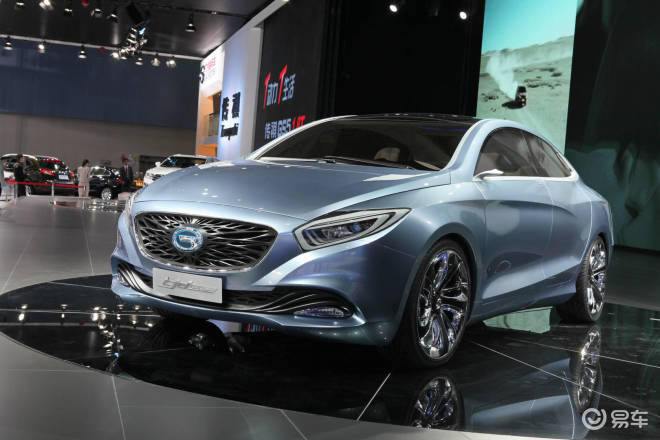

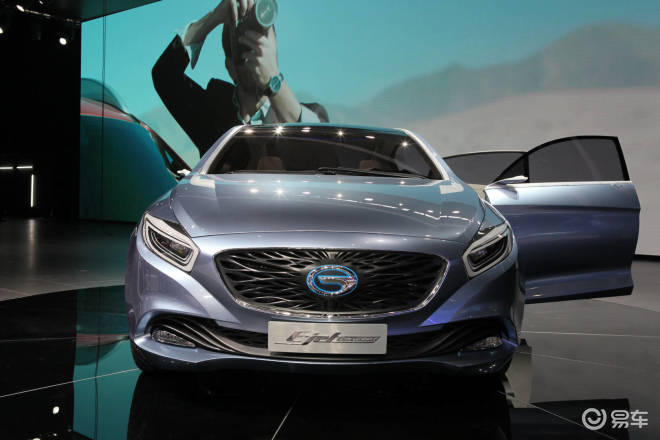

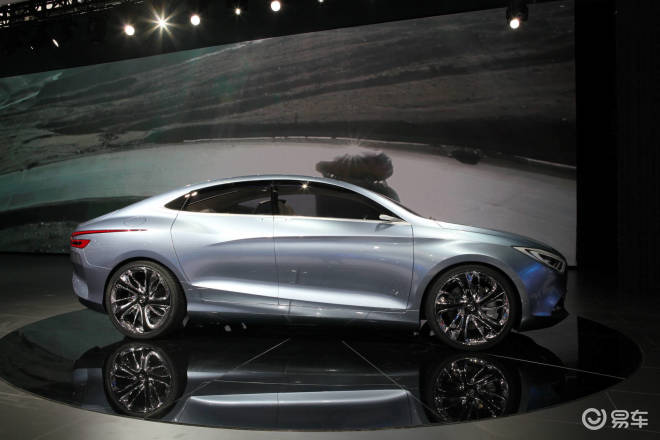

Traditionally GAC (Guangzhou Auto Group Co.) launches a new concept car at Auto Guangzhou:
73.5 KB Views: 562
Introduction of Compact NEV E-JET
Compact NEV E-JET，powerful, efficient and green，is a Range-Extended electric car with fashionable and modern appearance, designed by GAC Engineering based on its independently developed brand-new compact passenger vehicle platform. Equipped with a 95 kW (peak) permanent magnet motor and a 13kwh lithium-ion battery pack, E-JET can achieve a top speed of 160kph, an acceleration from 0 to 50kph within 4.5 seconds, and a gradeability higher than 32%. With its excellent energy management strategy and lightweight technology, E-JET can have a pure electric drive range of more than 100km. E-JET uses a 1.0L gasoline engine and a 30 kW PM generator as the range-extender to charge the battery when the battery SOC is low, which extends the total drive range to more than 600km with a fuel consumption of less than 2L/100km (NEDC cycle).
In pure electric drive mode, E-JET has demonstrated the advantage of zero tailpipe emission, low noise and low energy cost. In range-extending mode, comparing to battery-only EVs, there will be no more "range anxiety" thanks to the on-board range-extender, and as well, the vehicle cost is dramatically reduced. As a whole, E-JET works much better than conventional vehicles both in fuel economy and emission.
4x4 HYBRID Version of TRUMPCHI Sedan
4x4 HYBRID Version of TRUMPCHI Sedan is the first mass-produced full hybrid vehicle with all-wheel-drive feature in China, independently developed by GAC Engineering based on its mid-high class vehicle platform. It differs from the conventional Trumpchi sedan, mainly by adding an ISG (Integrated Starter/Generator) between the engine and the transmission at the front axle, a ERAD (Electrical Rear Axle Drive) PM motor onto the rear axle and an advanced lithium ion battery pack mounted back to the back seat. With this configuration, it has all the functions a full hybrid supposed to have: electric drive, engine automatic stop/start, regeneration brake/cruise, engine assist, etc. Further, the 4x4 hybrid has additionally a unique function of gear shift power assist, namely, during the gear shift the ERAD motor can provide power assist from the rear axle when the clutch is opened at the front, achieving a seamless gear shift of the RMT (Robotized Mechanical Transmission) without any torque interruption. In addition, this hybrid can automatically switch between 2WD and 4WD drive mode, depending on the real driving situation. Comparing to conventional Trumpchi, the 4x4 hybrid version has demonstrated excellent fuel economy (30% fuel saving), acceleration (2 seconds less from 0 to 100kph), drivability and ride comfort.
BEV Version of Trumpchi GS5 SUV
BEV Version of Trumpchi GS5 SUV, a prototype pure Electric Vehicle with exhilarating performance and charging convenience, is developed independently by GAC Engineering with support of AC Propulsion Inc. based on GAC's Trumpchi GS5 SUV. It is powered by a super efficient induction motor controlled with a highly integrated Power Electronics Unit. The high speed motor provides instantaneously available 225 Nm of torque and up to 150 kW (200 hp) of power, enabling a 0 to 100kph acceleration within 8.5 seconds. The Power Electronics Unit integrates the motor drive electronics and onboard charger to minimize system cost. The 18 kW high power charger allows a recharge time as fast as 2 hours and features bi-directional power capability, thus Vehicle-to-Grid (V2G), Vehicle-to-House and Vehicle-to-Vehicle power flow are all possible. The 35 kWh Li-Ion battery pack is mounted low for excellent vehicle stability and is controlled by a dedicated battery management system. The highly efficient drive train and excellent energy management system enable the vehicle to achieve a drive range of 100 miles at 60 mph.
